CE Helical Convoluted 18 Inch FIP Flexible Brass Hose
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | JQ |
| Certification: | CE/ISO |
| Model Number: | JQ72004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Customized |
| Delivery Time: | 7-45days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | FIP Flexible Brass Hose | Size: | 3/4''x3/4''FIP-18" Lead Free |
|---|---|---|---|
| Type: | Plumbing Hoses | Length: | Customized |
| Color: | Chrome | Nut Material: | Brass |
| Working Pressure: | 10 Bar | Quality Guarantee: | 10 Years |
| High Light: | Convoluted Flexible Brass Hose,Helical Flexible Brass Hose,CE FIP Brass Hose |
||
Product Description

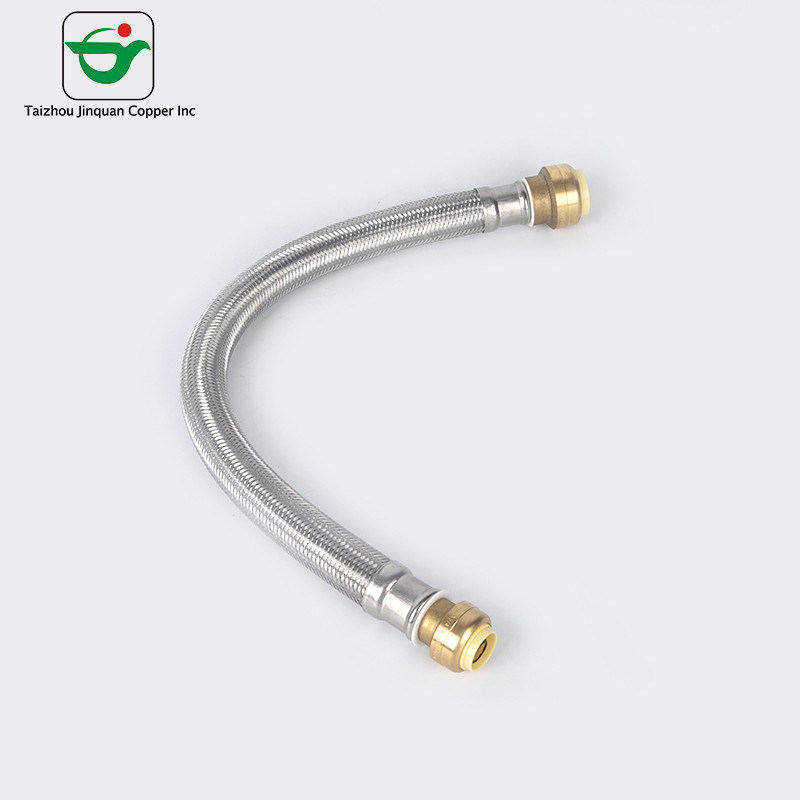

Helical / Convoluted 18 Inch FIP Flexible Brass Hose
FIP Flexible Brass Hose Material:
Inner Core: Corrugated Stainless Steel
•Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
•Stainless steel tubing formed into corrugations parallel to one another
•Helical / Convoluted option available upon request
Outer Core:Braided Stainless Steel Layers
•Purchase corrugated core hose with no layers, single or double braided
•Flexible metal hose outer braid layers made from 304 stainless steel.
FIP Flexible Brass Hose Parameters
|
Detail Specification
|
|
|
Material
|
304 Stainless steel
|
|
Finishing
|
Brushed nickel finishing
|
|
Size
|
30cm, 40cm, 50cm, 60cm, 80cm,100cm,120cm,150cm,200cm
|
|
Function
|
Cold/hot water faucet inlet hose
|
|
Working pressure
|
10 Bar
|
|
Seal test
|
1.6±0.05Mpa and 0.05±0.01Mpa, keep 1 min, no leakage
|
|
Flow rate
|
≤8.3L/min
|
|
Plating
|
Acid salt spray test ≥ 24 or 48 hours
|
|
Plating thickness
|
Chrome ≥ 0.2µm, nickel ≥ 8µm Or per your request
|
|
Certification
|
ISO9001:2008, ISO14001, cUPC, NSF, AB1953. Watersense
|
|
Warranty time
|
5 years
|
|
Customized
|
OEM & ODM are welcomed
|
|
Package
|
One piece one box
|
|
Package & Shipping
|
|
|
Samples leading time
|
3-5 days
|
|
Bulk leading time
|
About 15 days
|
|
Inner box
|
200*160*145cm
|
|
Carton Size
|
510*420*300 cm
|
FAQ
Q. Are you a factory or a trading company?
A: We are direct factory, our production line includes all brass, stainless steel copper and aluminum products or according to your requirements
Q. How long do I need to get the product sample for inspection?
A: For samples in stock, we can send them to you immediately. If it need make new samples according to your specifications, it will take about 15 working days
Q. What is the time of delivery?
A: If the items is in stock, we can deliver within 7 days after receiving your payment For customized orders, within 20tons, production time is 40-45 days after confirmation of each detail
