DIN8077 DIN8078 1''X1''X1'' Brass Equal Tee Pipe Fitting
Product Details:
| Place of Origin: | ZheJiang |
| Brand Name: | JQ |
| Model Number: | JQ61009 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000 |
|---|---|
| Price: | 1-2 USD |
| Packaging Details: | Customlized |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 20000 pcs per Month |
|
Detail Information |
|||
| Name: | Equal Tee Fitting | Size: | 1''x1''x1'' Tee Lead Free |
|---|---|---|---|
| Type: | Coupling,Union | Material: | Copper |
| Connection: | Push-fit | Application: | Quick Connect Fittings |
| Shape: | Equal | Head Code: | Round |
| Technics: | Forged | Gender: | None |
| Medium: | Water | Working Pressure: | 200psi |
| High Light: | DIN8077 Brass Equal Tee Pipe Fitting,DIN8078 Brass Equal Tee Pipe Fitting,1''X1''X1'' Brass Equal Tee |
||
Product Description

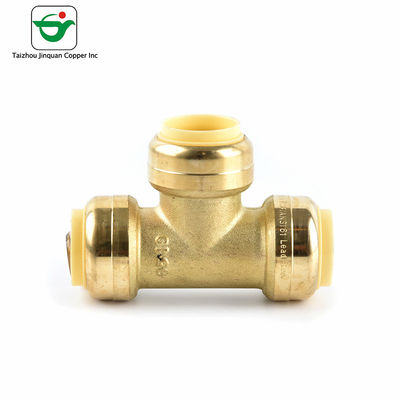

Forged Pipe Brass 1''X1''X1'' Equal Tee Fitting
Equal Tee Fitting Introduction
Approved for use underground and behind walls without access panels.
Certified for use in hydronic heating and potable water.
Push-Fit products are very convenient to install, just need to push the pipe completely into the fitting, needn't use any tools, such as spanner.
Equal Tee Fitting Characteristic:
1) Made in brass material or carbon steel with nickel plated, and sealed with NBR
2) Easy to connect tube by one touch, and the is applicable for Polyurethane tubing and Nylon tubing
3) Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT,PT and Metric
4) We can provide female quick couplings and male plugs.
Equal Tee Fitting Specification:
| Name | Forged Pipe Brass 1''X1''X1'' Equal Tee Fittingpipe |
| Color | Double color,gold color,silver color |
| Connector | Thread connecting |
| Pressure | PN20 |
| Packing | Normal packing:IFAN inner bag+carton customized acceptable |
| Usage | PEX PIPE |
| Leadtime | Normally 2weeks after got the payment. |
| Serviceable life | more than 50 years |
| Certification | ISO 9001:2000 DIN8077/&DIN8078 |
| Portable,to be transported and handled conveniently. | |
| Low construction expense due to easy and reliable installation. | |
Equal Tee Fitting Pictures
Equal Tee Fitting Installation
Select the correct size fitting and pipe for the job. Check that fittings and pipe are clean, in good condition and are free from damage and foreign objects.Cut the pipe so that the ends are square.Ensure that there are no burrs or damage to the cut end.Once the pipe end is cut square and clean,use a permanent marker to mark the insert depth on the outside of the pipe.This mark is used to ensure that the joint is assembled correctly.To assemble correctly,the pipe needs to be pushed into the fitting untill it meets the tube stop.Follow these three steps to insert the pipe into the fitting.
1.lnsert the pipe through the release collar against the grab ring.
2.Push the pipe firmly with a slight twisting action until it reaches
the tube stop.
3.To ensure that the pipe is correctly inserted, check that the depth
mark is within 0.005 in (0.13 mm) of the end of the release collar.
Disconnection of the joint can only occur by using the PUSHLOCK removal tool.By applying pressure to the release collar with the re-
moval tool, the grab ring teeth are splayed.This action releases the pipe, allowing it to be removed from the fitting.
1.Place the PUSHLOCK removal tool around the pipe with the non-
branded face against the release collar.The end with the size dis-
played on the removal tool should be positioned around the pipe and
the other end around the neck of the fitting.
2.Push the removal tool against the release collar and pull the pipe
with a twisting action to release the pipe.
3.Check the fitting and pipe end for damage.The fitting and pipe
should be free of damage, foreign objects and marks on the outside
diameter. If the pipe is damaged or marked, then cut and use a new
section of pipe.
