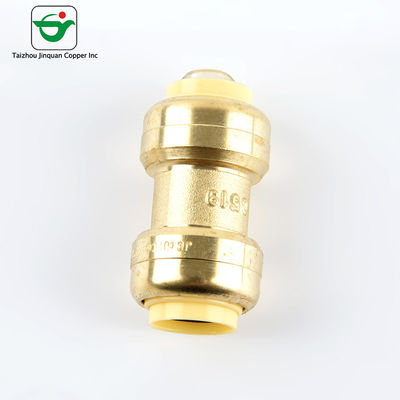

• Round Head Straight 3/4''X3/4" copper pipe slip coupling
  • Round Head Straight 3/4''X3/4" copper pipe slip coupling
Round Head Straight 3/4''X3/4" copper pipe slip coupling

Round Head Straight 3/4''X3/4" copper pipe slip coupling

Product Details:

Place of Origin: ZheJiang
Brand Name: JQ
Model Number: JQ61302-Q

Payment & Shipping Terms:

Minimum Order Quantity: 10000
Price: 1-2 USD
Packaging Details: Customlized
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 20000 pcs per Month
Get Best Price Contact Now

Detail Information

Name: Srtaight And Reducing Couplings Size: 3/4''x3/4"coupling Lead Free
Type: Coupling,Union Material: Copper
Connection: Push-fit Application: Quick Connect Fittings
Shape: Equal Head Code: Round
Technics: Forged Gender: None
Medium: Water Working Pressure: 200psi
High Light:

Straight Copper Pipe Slip Coupling


3/4''X3/4" Copper Slip Coupling


Round Head Copper Pipe Slip Coupling

Product Description

Lead Free Straight 3/4''X3/4" Copper Slip Coupling


Copper Slip Coupling Introduction


100% copper made Tee shape water pipe female fitting,no need welding and easy to install by click the fittings to the pipes.

Widely use in building,household,heating supply,garden watering,decoration etc.Long life using,quality gurantee for 100 years at least.


Copper Slip Coupling Characteristic:


1) Made in brass material or carbon steel with nickel plated, and sealed with NBR
2) Easy to connect tube by one touch, and the is applicable for Polyurethane tubing and Nylon tubing
3) Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT,PT and Metric


Copper Slip Coupling Specification:


Specification Parameter
Name Lead Free Srtaight 3/4''X3/4" Copper Slip Coupling
Applicable medium Compressed Air, Vacuum
Pressure range 0~1.0 MPa
Proof pressure 1.5 MPa
Negative range -100kpa (10Torr)
Temperature range 5°C~60°C
Applicable tube PU hose, Nylon hose, PE hose


Copper Slip Coupling Pictures


Round Head Straight 3/4''X3/4" copper pipe slip coupling 0



Round Head Straight 3/4''X3/4" copper pipe slip coupling 1

Select the correct size fitting and pipe for the job. Check that fittings
and pipe are clean, in good condition and are free from damage and
foreign objects.Cut the pipe so that the ends are square.Ensure that
there are no burrs or damage to the cut end.Once the pipe end is cut
square and clean,use a permanent marker to mark the insert depth
on the outside of the pipe.This mark is used to ensure that the joint
is assembled correctly.To assemble correctly,the pipe needs to be
pushed into the fitting untill it meets the tube stop.Follow these three
steps to insert the pipe into the fitting.
1.lnsert the pipe through the release collar against the grab ring.
2.Push the pipe firmly with a slight twisting action until it reaches
the tube stop.
3.To ensure that the pipe is correctly inserted, check that the depth
mark is within 0.005 in (0.13 mm) of the end of the release collar.


Round Head Straight 3/4''X3/4" copper pipe slip coupling 2

Disconnection of the joint can only occur by using the PUSHLOCK
removal tool.By applying pressure to the release collar with the re-
moval tool, the grab ring teeth are splayed.This action releases the
pipe, allowing it to be removed from the fitting.
1.Place the PUSHLOCK removal tool around the pipe with the non-
branded face against the release collar.The end with the size dis-
played on the removal tool should be positioned around the pipe and
the other end around the neck of the fitting.
2.Push the removal tool against the release collar and pull the pipe
with a twisting action to release the pipe.
3.Check the fitting and pipe end for damage.The fitting and pipe
should be free of damage, foreign objects and marks on the outside
diameter. If the pipe is damaged or marked, then cut and use a new
section of pipe.


Round Head Straight 3/4''X3/4" copper pipe slip coupling 3


about us


Originally founed in1983,TaiZhou JinQuan Copper Inc. is one of the leading
manufacturer of lead free plumbing valves&fittings, mainly serving plumbing
wholesalers,distributors and retailers.
We are currently supplying lead free PEX fittings&Valves,push-fit fittings&Valves,
Various water supply stops and water connectors etc.All products are made of
lead-free with DZR functional brass,and have been certified and listed by IAPMO.
Our goal is to help our customers to increase their profitability and gain more market
share by taking advantage of our extremely competitive price and quality.
